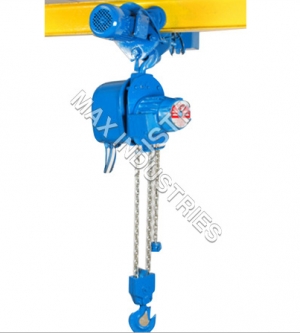

Monorail Hoist

Monorail Hoist

We are among the most reputed manufacturers, suppliers and exporters of Monorail Hoist. Manufactured using quality-assured cast iron & stainless steel, under strict supervision of skilled professionals, these hoists are always on high demands. Offered hoists are widely used in construction, engineering, manufacturing, mining and various other industries for applications related to loading and unloading of heavy goods and other material. These hoists are highly acclaimed around the globe for their tough construction, high load bearing capacity, easy maintenance and longer service lives. Moreover, Monorail Hoist is precisely tested for flawlessness by a team of quality auditors having deep knowledge of the proper functionality.

Monorail Hoist

Our company is noted as one of the well known manufacturers, exporters and suppliers of Monorail Hoist. We have well equipped manufacturing unit, where we manufacture these hoists using high-end quality stainless steels & cast irons. We can customize our range as per specification provided by our clients. Our entire product line finds huge application in construction, mining and engineering industries for loading and unloading purpose. High load carrying capacity, robust construction and easy maintenance are the distinguished features of our Monorail Hoist.

Product Specifications:

Motor: 0.5 HP, 3 Phase, 1440 RPM, Class F, 40% Intermittent Duty, Induction Motor

Exceptions to EH2 Hoist: 6.3 mm, Grade 80, Alloy Steel Material Load Chain

Overall Dimensions: 560 x 410 x 265 mm (Head room x Other Dimensions)

Headroom (With Monorail Electric Traveling Trolley): 620 mm

Headroom (With Monorail Geared Traveling Trolley): 600 mm

Weight of Hoist at 3 Mtr. Lift: 35 Kgs

No. of Falls of Load Chain: 1 Falls

Headroom (Hook Suspension): 560 mm

Extra Weight per Meter: 1.2 Kgs.

Hoisting Speed: 6.4 Mtr./ Min
