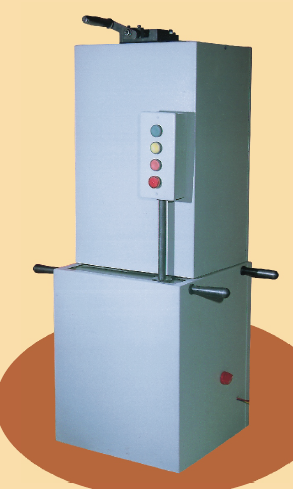

Motorised Notch Cutting Machine

Motorised Notch Cutting Machine: ¬ The machine is a free standing unit built sturdily. ¬ The broach is mounted in a carrier, which is drawn by a twin lead screw mechanism through the full stroke with the help of 0.5 HP motor. ¬ V / U notch Broaching Machine fixture to clamp the specimen. The tooling includes the vice for holding the 10mm X 10mm specimen. The tooling/ fixtures include the adjustors & the end stop necessary to ensure the notch depth & position accurately as per the Standards. ¬ The approx. weight is around 100 kg. ¬ The machine dimension (approx.) 385mm X 385mm X 1050mm. The machine will broach a notch in 10mm square material to the following standards : * A.S.T.M. A370, E23 * B.S.131:PART I, II, III, IV . BS EN 10045-1993 * DIN 50 115 * IS 1598 1977, IS 1757 1988, IS 1499 1977
